Convert files from most CAD formats With Datakit

Datakit provides integrated plug-ins for SOLIDWORKS and other software.

What is Datakit?

Datakit can import or export an array of native data: 2D, 3D, geometric, topological, attributes, construction history, FD&T, and Features with a wide choice of control parameters addressing specific user needs (choice of coordinate system, entity filtering, etc.).

100% SOLIDWORKS Compatible

Datakit reads all native CAD files produced by the major CAD software solutions. Don't worry about compatibility problems with software updates. Datakit stays compatible with all the latest versions.

Automatic File Transfer

Directly selecting a whole directory to be processed, including its sub-directories, saves time. This gives users the option of saving their conversions.

Assembly Tree Preview Functions

Users have all the assembly tree preview functions to help and choose the level at which they want to open the elements they are interested in.

CrossCad

Why CrossCad?

Datakit’s integrated plugins allow SOLIDWORKS to import and export in even more formats.

Easy to install and use

 Fast data processing

Robust & Reliable

 Regular updates

CrossCAD Features

The plug-ins are simple to use: once installed, SOLIDWORKS adds a “DATAKIT EXCHANGE” option. With a single click from this menu, you can conduct any model import or export in the format you need.

History Tree Recovery

The CATIA V5 import plug-in offers a feature that allows you to get information from the history tree. This powerful translator identifies geometric and machining characteristics present in CATIA V5’s tree and precise models, and allows you to use them directly in SOLIDWORKS. That way, you may work your way back to the designer’s original purpose using a complete assembly tree.

CrossManager

Why CrossManager?

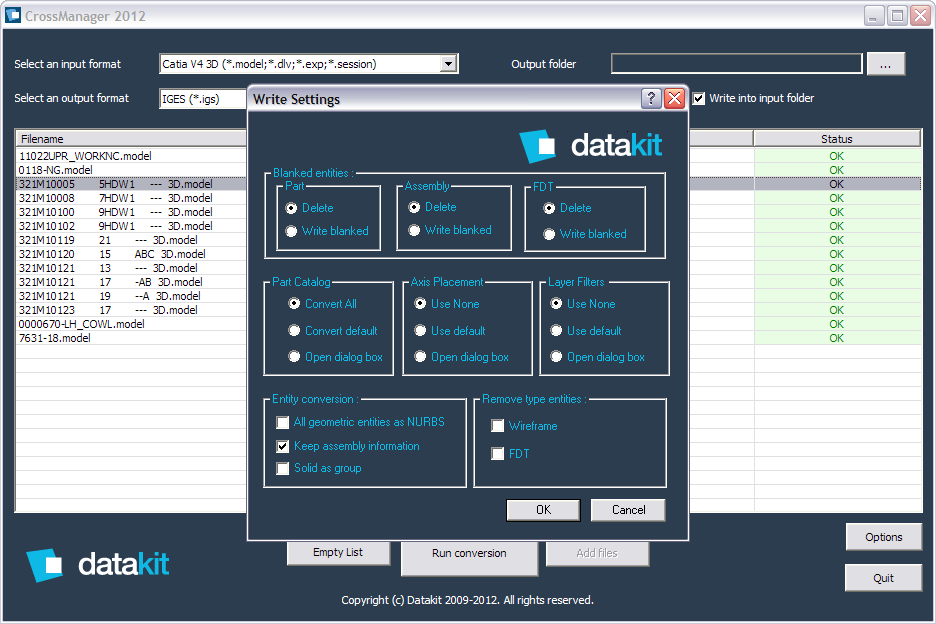

CrossManager is a standalone program that converts files between most CAD formats. With Cross Manager, all you have to do is pick one or more CAD files and have them automatically translated into format you need.

Inputs

  • 3DVIA / CATIA / SOLIDWORKS Composer
  • 3Shape DCM
  • ACIS
  • CADDS
  • CATIA V4 2D
  • CATIA V4 3D
  • CATIA V5 2D
  • CATIA V5 3D
  • CATIA V6 / 3DEXPERIENCE 2D
  • CATIA V6 / 3DEXPERIENCE 3D
  • CEREC – Sirona Dental
  • CGR
  • Creo View
  • DWG / DXF 2D
  • DWG / DXF 3D
  • FBX
  • glTF
  • IFC
  • IGES
  • Inventor
  • JT
  • OBJ
  • Parasolid
  • PLMXML
  • Procera ProE / Creo Parametric 2D
  • ProE / Creo Parametric 3D
  • Revit
  • Rhino
  • Robcad
  • Solid Edge 2D
  • Solid Edge 3D
  • SOLIDWORKS 2D
  • SOLIDWORKS 3D
  • STEP
  • STL
  • UG NX 2D
  • UG NX 3D
  • VDA

CrossManager

Outputs

  • 3DXML
  • 3MF
  • ACIS
  • CADDS
  • CATIA V4 3D
  • CATIA V5 3D
  • CGR
  • COLLADA
  • DXF
  • EMF
  • FBX
  • glTF
  • IFC
  • IGES
  • JT
  • OBJ
  • Open CASCADE
  • Parasolid
  • PDF 2D
  • PDF 3D
  • PRC
  • Robcad
  • SOLIDWORKS 3D
  • STEP
  • STL
  • UG NX 3D
  • Unisurf
  • VDA
  • VRML
